3 - Mechanical Fixings

BRAVOLL PTH-KZ
Metal Pin Hammer-In Fixings



• Special plate surface for optimum render adhesion
• Low embedment depth
• High pull-out values
• Optimum thermal transmittance
• Favourable quantity of anchors per m²
• Quick and easy installation
• Suitable for high thickness insulation boards
• Premounted anchor
Point thermal transmission χ: 0.002 W/K
Minimum embedment depth: 25mm
Anchor plate load resistance: 2.1kN

Downloads

BRAVOLL PTH-S
Metal Pin Screw-In Fixings



• Universal premium anchor – approved and certified for all types of building materials
• High pull-out values – Optimal anchor quantity per m²
• Can be installed flush or recessed thanks to the double-sided setting tool BRAVOLL MPS
• Galvanized steel screw with plastic head moulding for limited thermal bridge
• Low embedment depth and diameter 8 drilling for quicker setting
• Quick and easy setting through the insulation material
• Pre-assembled anchor for faster installation
• Very wide length range (from 95 to 475mm) for fixing high thicknesses
Point thermal transmission χ: 0.002 W/K
Minimum embedment depth: 25mm
Anchor plate load resistance: 2.6kN

Downloads

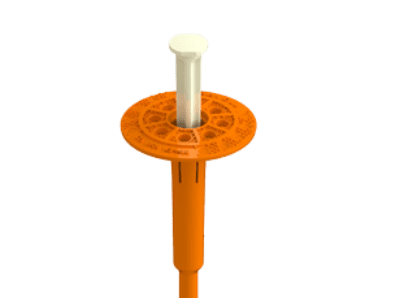

BRAVOLL PTH-EX
Metal Pin Hammer-In Fixings



• One-piece expansion pin for easy setting
• Special deformation area for a perfect finish
• Low thermal conductivity
• Low embedment depth - quick drilling
• High pull-out values - lower quantity of anchors per m²
• Special plate surface for optimum render adhesion
• Suitable for high thickness insulation boards
• Pre-mounted anchor
Point thermal transmission χ: 0.001 W/K
Minimum embedment depth: 25mm
Anchor plate load resistance: 1.4kN

Downloads

EJOT H3
Plastic Pin Hammer-In Fixings


• Approved for concrete, solid and perforated masonry
• Precise installation due to defined anchor washer movement through movable washer
• The flexible anchor washer assures an optimum positioning in the insulation board, also in case of slightly sloped drilled boreholes
• Plastic injection element to reduce thermal transmission
• Short embedment depths, minimum drill hole depth
• Minimised risk of breaking nails due to fibre-reinforced composites
• Pre-mounted nail for quick installation
Point thermal transmission χ: 0.000 W/K
Minimum embedment depth: 25mm

Downloads

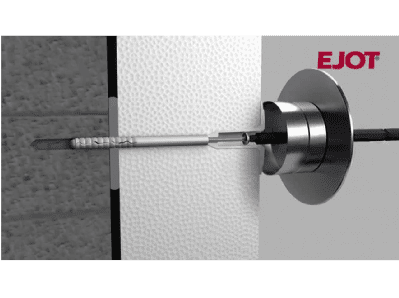

EJOTHERM STR U 2G
Metal Pin Screw-In Fixings


• Approved for all categories of building material
• Countersunk installation - EJOT STR-principle with Ejotherm STR cap for homogeneous surfaces and even rendering - quick and easy without milling dust
• Up to 40% faster installation
• Optimised thermal bridging (0.001 W/K)
• Surface fixed installation using Ejotherm STR plug
• Short embedment depths, high loads for maximum safety and economic anchor usage
• Permanent contact pressure
• Pre-mounted screw for quick installation
• 100% setting control: the countersunk installation of the washer indicates safe anchorage
Point thermal transmission χ: 0.001 W/K (Countersunk)
Point thermal transmission χ: 0.002 W/K (Surface Mounted)
Minimum embedment depth: 25mm

Downloads
